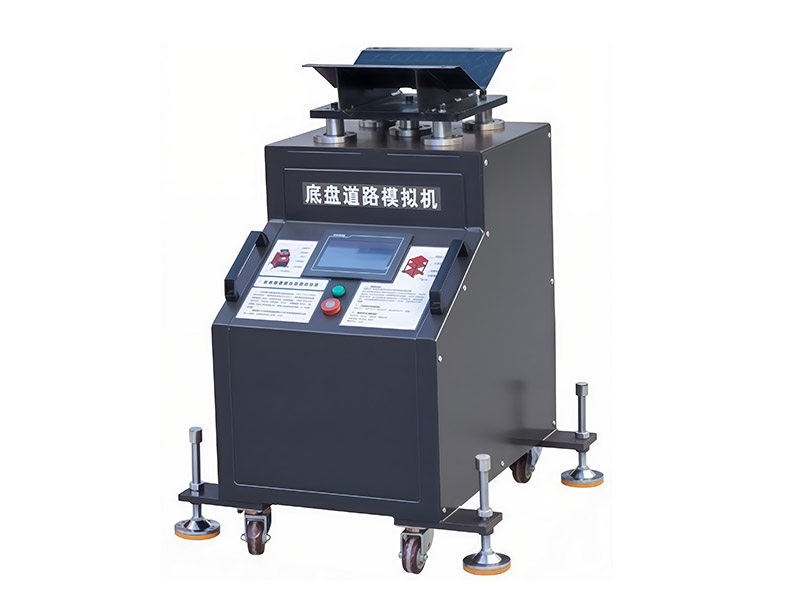

Driven by a multi-frequency high-torque motor (4,500kg lifting capacity), it uses 220/380V power and has emergency stop, leakage protection, searchlights and a touchscreen. With microcrystal road simulation, 8-point support, 6 sets (stress release) and quiet belt drive, it enables accurate testing. ISO9001/CE certified.
1.Driven by multi frequency high torque motor,lifting capacity4500kg.
2.Powered by 220/380V voltage,providing a super large driving force.
3.Equipped with safety emergency stop button, one click shutdown lock and safety leakage protection device.
4.The device can simulate different bumpy road surfaces through the microcrystalline regulator,achieves precise detection.

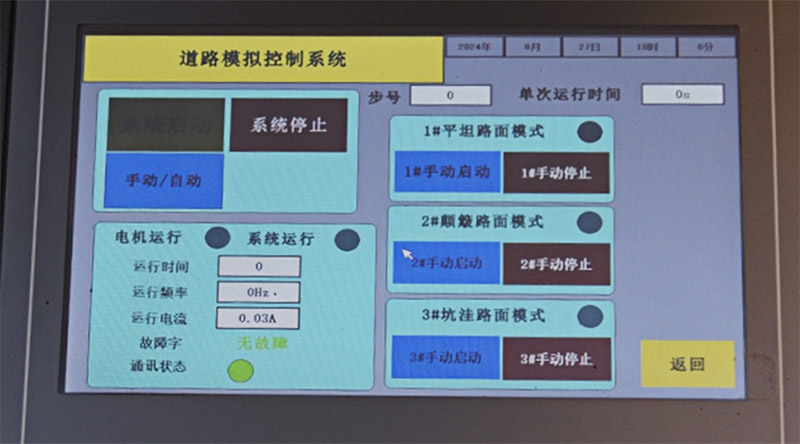

5.Touch screen is elegant and high-end, making operation more convenient.
6.Equipped with searchlights for convenient illumination.
7.Precision drive connection,belt drive, good silence effect,providing the best detection environ- ment.
8.The equipment is supported and adjusted at 8 points to ensure stability.
9.Total six sets of equipment, equipped with stress release devices,more comprehensive and accurate in detection.
10.IOS9001 /CE Certification
Parameters:
Maxi. lifting height:1100mm
Work temprature:-30°+50°
Lifting capacity:4500kg
Working voltage:380V/220V
Working frequency:460 times/minute
Equipment configuration:two main workers, two support frames, two stress releases
Gross weight:820kg
Motor power:3kw
Control mode:Nicrocrystal regulator
Main worker packing size:830*830*1130mm
Support frame packing size:830*600*1130mm
Colour:customized
