Hydraulically driven with low noise, it needs little maintenance. Wired communication and SCM tech ensure real-time synchronization. Its LCD shows lifting height, fault codes and troubleshooting. With movable columns (all operable for lift/lower/lock/emergency brake), it’s easy to use. ISO 9001:2015 certified.
• Hydraulic drive,low noise and nearly maintenance free;
• Cable-communication,SCM technology guarantees synchronization;
• LCD screen shows the real-time lifting height,fault warnings and troubleshooting;

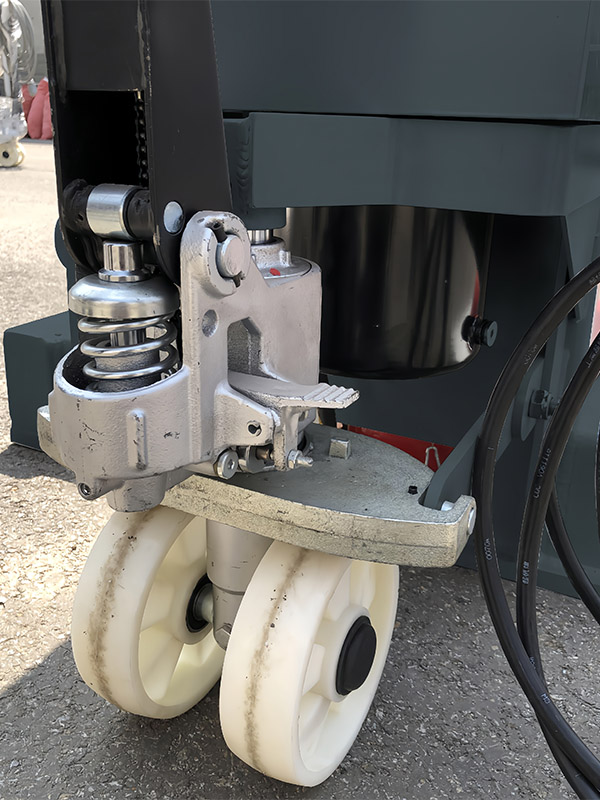

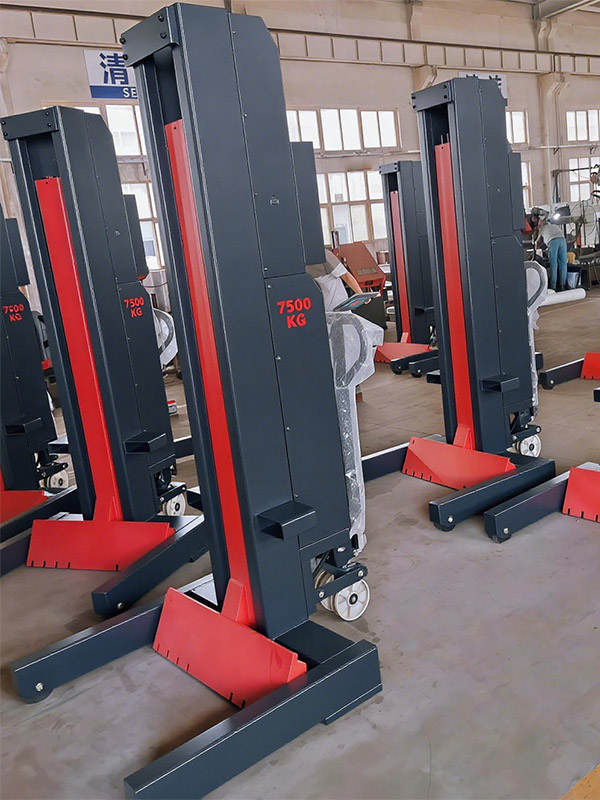

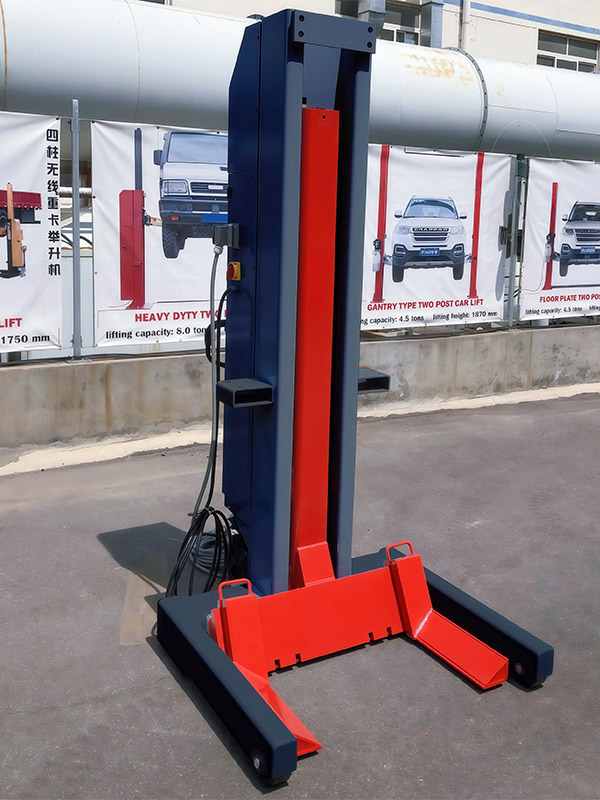

• Moveable columns makes your work easy and comfortable;

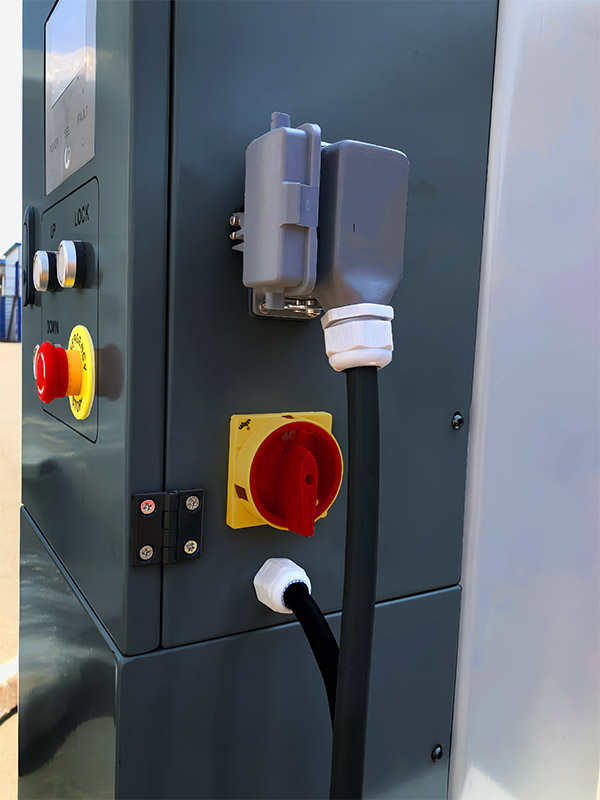

• Operations available at all columns,UP/DOWN/LOCK/EMERGENCY STOP;
• ISO 9001:2015certified
Model | CHL-002B1 | CHL-002B2 |
Communication type | Communication Cable | Communication Cable |
Lifting Capacity | 22tons | 30tons |
Lifting Height | 1750mm(1900mm) | 1750mm (1900mm) |
Column Height | 2250mm (2470mm) | 2250mm (2470mm) |
Forkarm Length | 402mm | 402mm |
Applicable tire diameter | 500~1120mm | 500~1120mm |
Power Unit | Electric-hydraulic pump | Electric-hydraulic pump |
Working Voltage | 220/380V | 220/380V |
Operation voltage | 24V | 24V |
