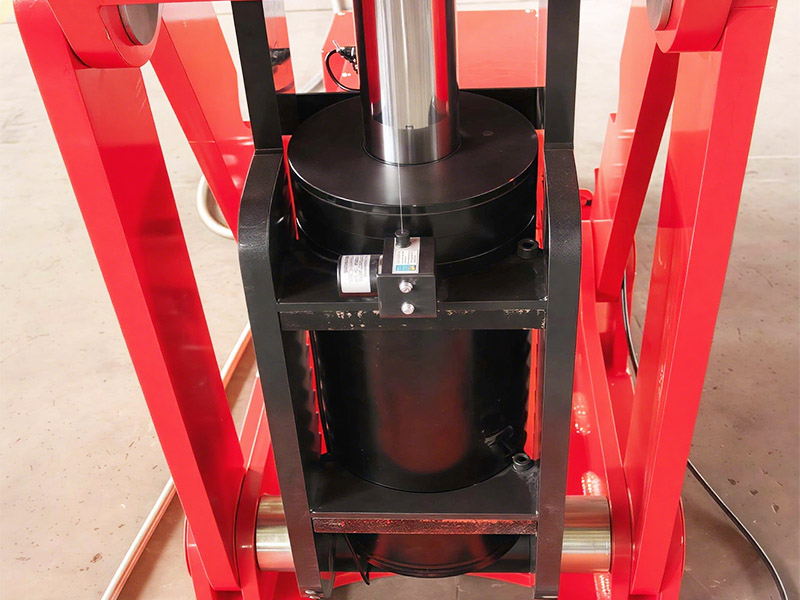

Controlled by an electric hydraulic pump, it is easy to operate, powerful and features a low failure rate. Suitable for most commercial vehicles, it supports customization of platform size, number of pull towers and stretching capacity.
• High quality electric-hydraulic pump, powerful, and low failure rate;
• Applicable to most commercial vehicles;
• Platform dimensions, tower quantity, and pulling capacity are all customizable;
Model | CHPTL-004 |
Power Unit | Electric-Hydraulic Pump |
Lifting Capacity | 40tons |
Max. Lifting Height | 1700mm |
Min. Lifting Height | 440mm |
Platform Length | 8500mm/9600 mm/11900 mm |
Width of Single Runway | 750mm |
Unlocking System | Pneumatic Unlocking |
Working Voltage | 220/380V |
Working Power | 12kW |
