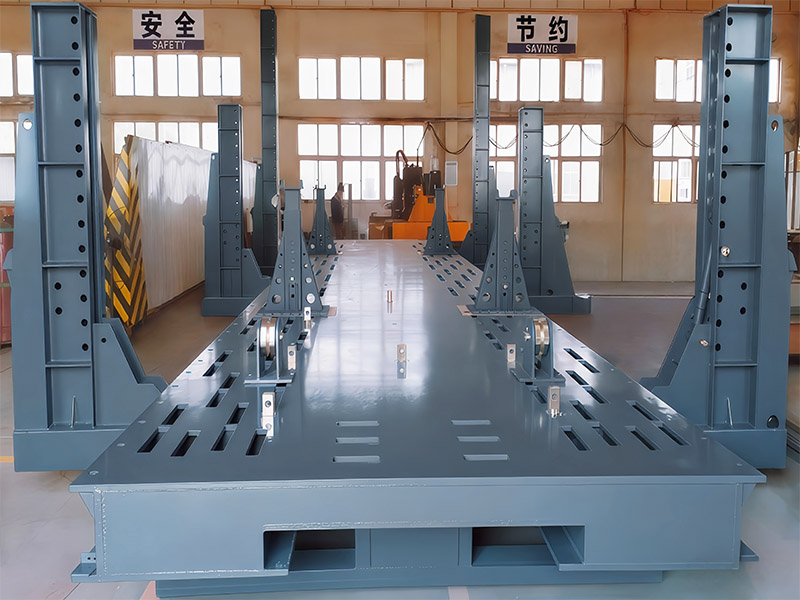

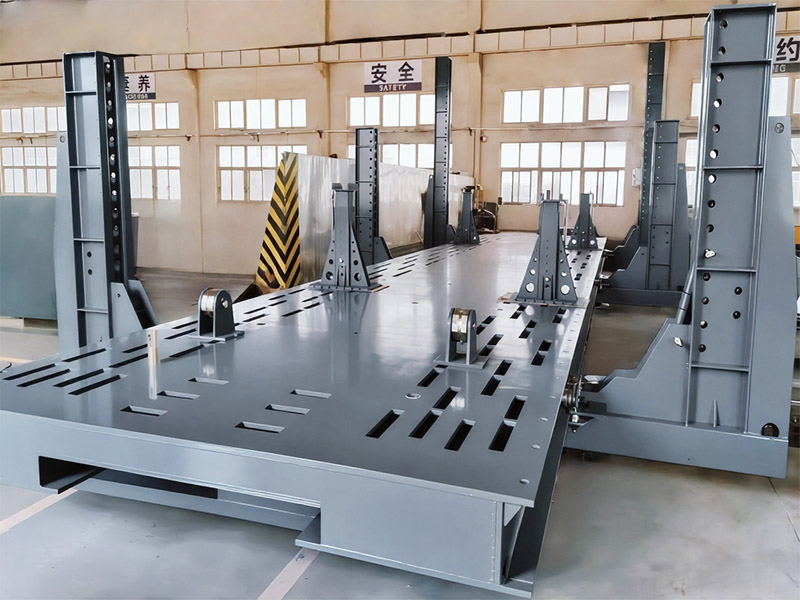

Controlled by an electric hydraulic pump, it is easy to operate, powerful and has a low failure rate. It enables 270° stretching (80t pull per tower) with high efficiency, bears 120t for most commercial vehicles, and has a trench design for easy vehicle access. Platform size, tower quantity and stretching capacity are customizable. ISO 9001:2015 certified.
• High quality electric-hydraulic pump, powerful,and low failure rate;
• 270 degree pulling around platform,80 tons pulling capacity per tower, strong and effective;
• 120 tons lifting capacity,applicable to most commercial vehicles;
• In-ground design,easy to drive on and off;
• Platform dimensions,tower quantity, and pulling capacity are all customizable;
• ISO 9001: 2015 certified.
Model | CHF-001 |
Platform Material | Manganese Steel Plate |
Platform Dimension | 11960x2460x600mm |
Loading Method | In-ground |
Loading Capacity | 120tons |
Puling Capacity | 80tons Per Tower |
Pulling Range | 270°Around Platform/270 |
Power Unit | Electric-hydraulic Pump |
Working Voltage | 380V |
Hydraulic Pressure | 70MPa |
