Hydraulically driven with low noise, it requires little maintenance. Wireless communication and SCM technology ensure real-time device synchronization. Its LCD displays real-time lifting height, fault codes and troubleshooting solutions. With movable columns (all operable for lifting/lowering/locking/emergency braking), it’s easy to use. ISO 9001:2015 certified.
• Hydraulic drive, low noise and nearly maintenance free;
• Wireless-communication, SCM technology guarantees synchronization;

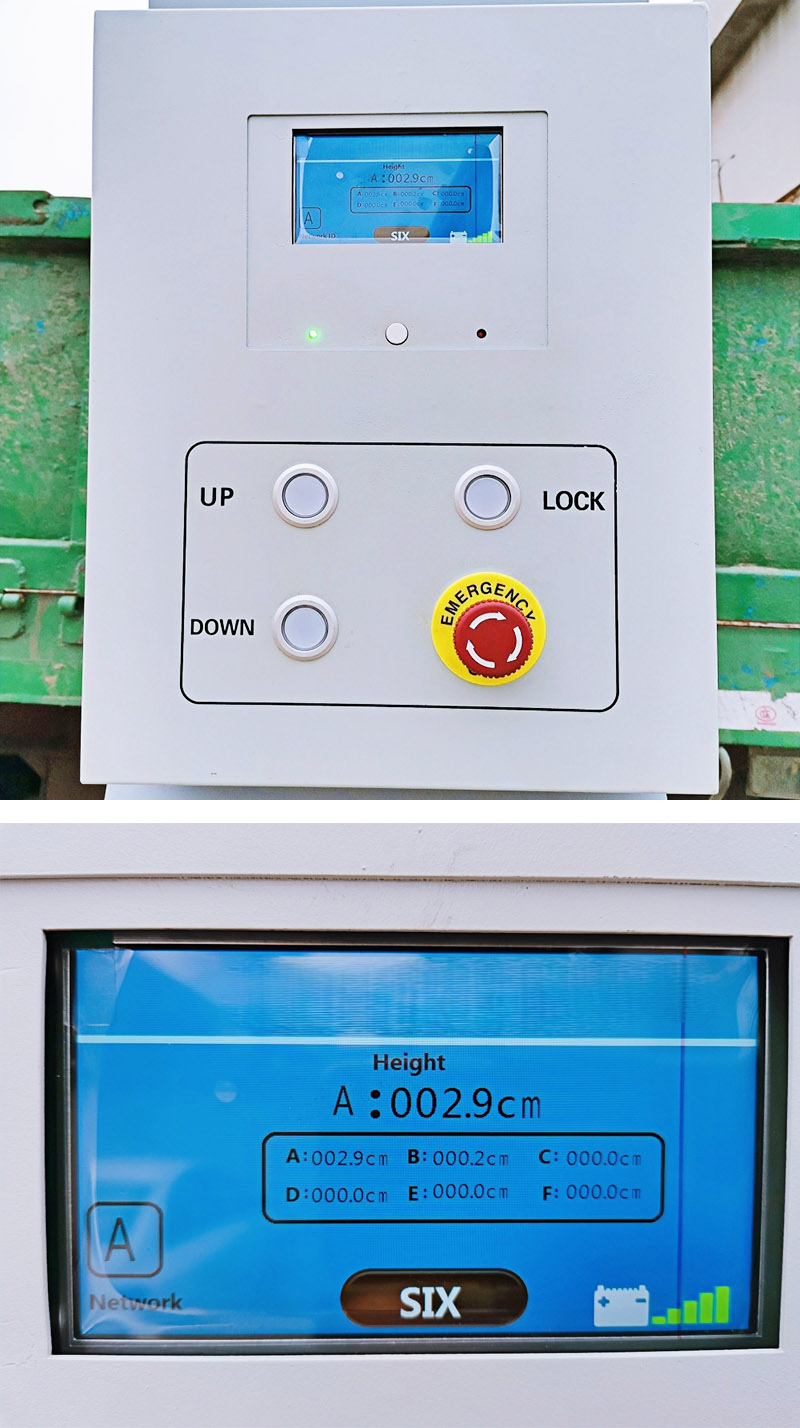

• LCD screen shows the real-time lifting height, fault warnings and troubleshooting;

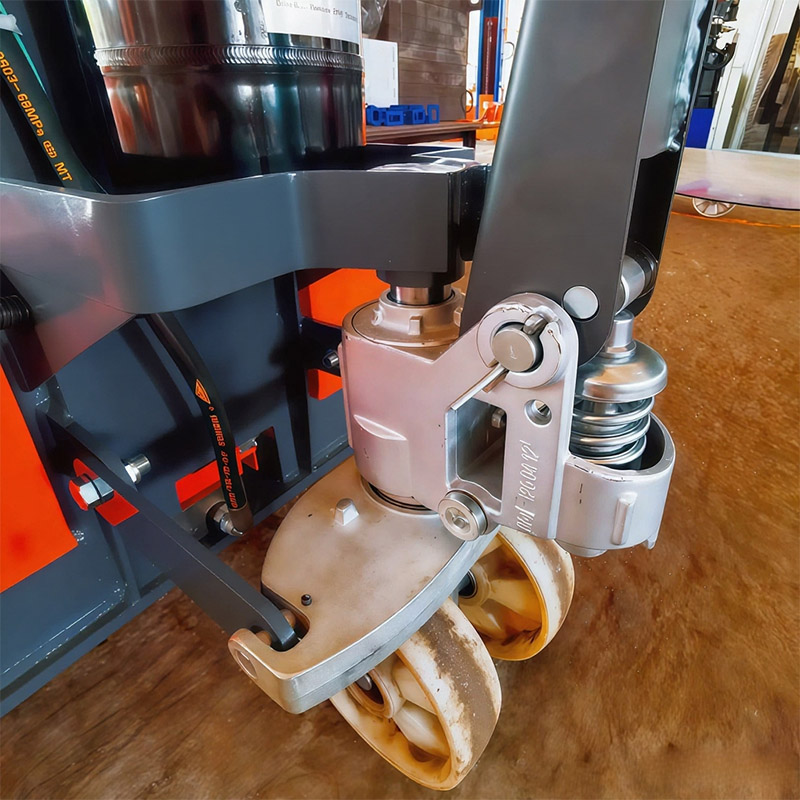

• Moveable columns makes your work easy and comfortable;
• Operations available at all columns, UP/DOWN/LOCK/EMERGENCY STOP;
• ISO 9001: 2015 certified
Model | CHL-002A1 | CHL-002A2 |
Communication Type | Wireless Communication | Wireless Communication |
Lifting Capacity | 33 tons/33吨 | 45tons/45吨 |
Lifting Height | 1750mm(1900 mm) | 1750mm(1900 mm) |
Column Height | 2250mm(2470 mm) | 2250mm(2470 mm) |
Forkarm Length | 402mm | 402mm |
Applicable Tire Diameter | 500~1120 mm | 500~1120mm |

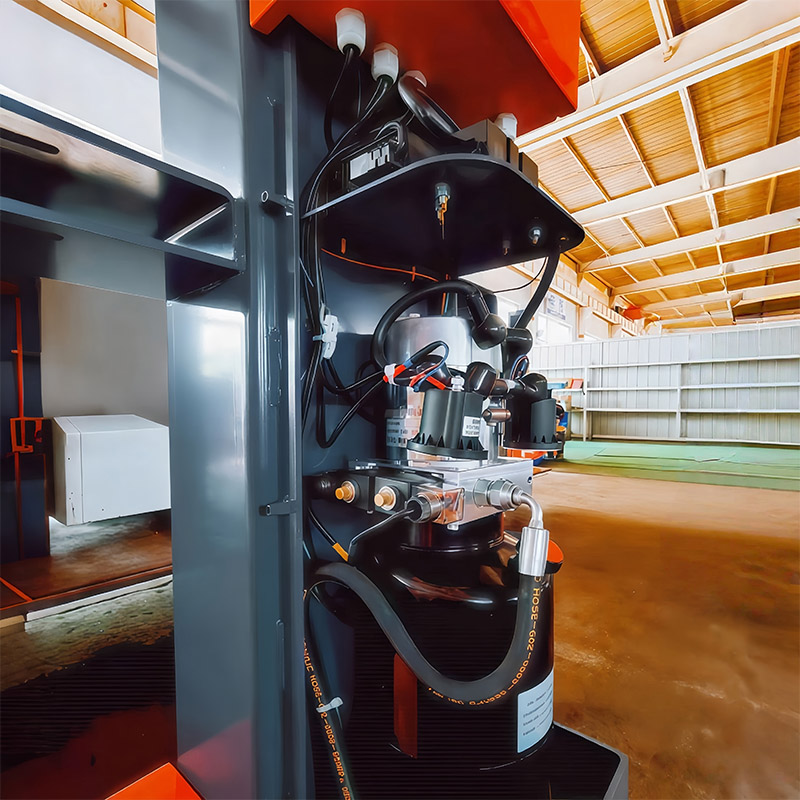

Power Unit | Electric-hydraulic Pump | Electric-hydraulic Pump |
Working Voltage | 24V | 24V |
Operation Voltage | 24V | 24V |
