It supports electric, manual and unlock functions. Its hydraulic power unit has a throttle to adjust lowering speed. Driven by hydraulic cylinders with wire rope transmission, it lifts/lowers stably and quietly. Equipped with wire rope safety locks (breakage protection), 8-point electric interlocking locks and adjustable runway spacing, it enables safe height-locking. A secondary lift cart (manual/pneumatic/hydraulic optional) is included.
1.Electric,manual and unlocking are adopted.
2. The hydraulic power unit is equipped with throttling device, and the lowering speed can be adjusted at any time.
3. Driven by hydraulic cylinder and steel wire rope, the lifting is stable and quiet.

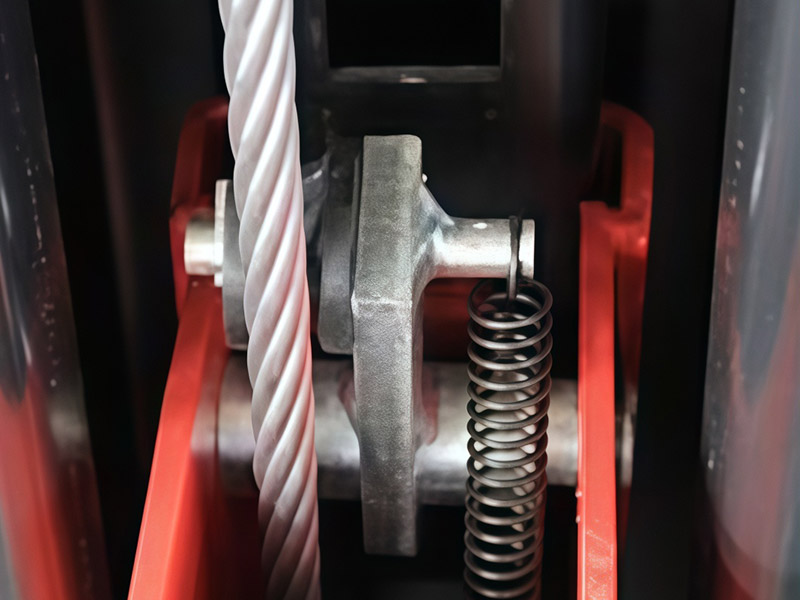

4.The steel wire rope control safety lock is set, which has the fuction of protect- ing the steel wire rope from breakage, making the operation safer.
5. lt adopts electric linkage lock and eight point locking for convenient opera- tion.
6. It can be locked at the required height to operate safely and reliably.
7. The runway spacing is adjustable and suitable for vehicles with different track widths.

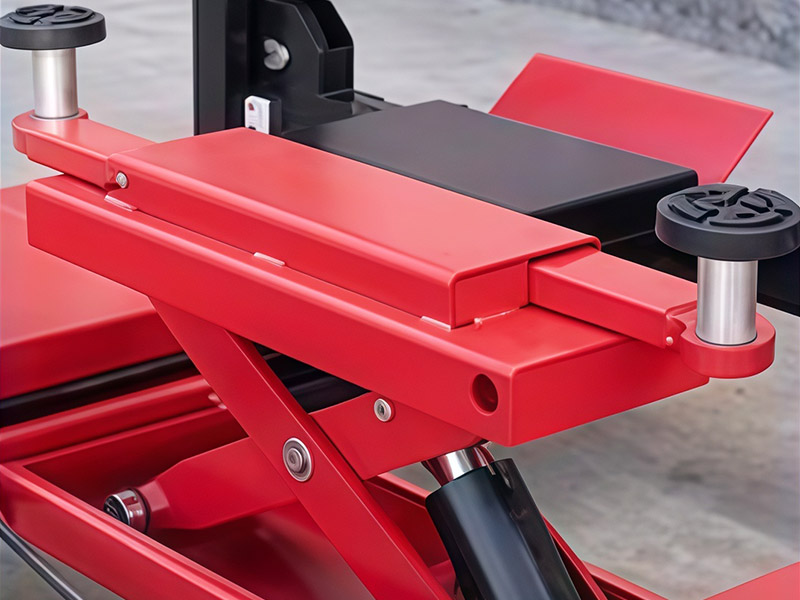

8. It is equipped with a secondary lifting trolley, which can be manually, pneumatically or hydraulically lifted.
Parameters:
Specification/Product name：C4L-5000
Lifting Capacity：4000 kg/8818 lb
Sub-lift Lifting Capacity：2000 kg/4409 lb
Lifting Height ：1500 mm/59 in
Sub-lift Lifting Height：470 mm/18.5 in
Platform Length：4200 mm/165.35 in
Runway Plate Width：550 mm/21.65 in
Rated Hydraulic Pressure：18 Mpa
Working Voltage：220V/380V
Working Power：2.2 KW
Total Weight：1200 kg/2645 lb
