Its cylinder parts are CNC-machined (excellent concentricity, finish; rolled mirror cylinder), with imported seals and safe, easy manual lowering. Laser-cut for precision, it has dual cylinders for stable lifting, shot-blasted & high-temp sprayed durable surfaces, and hidden cables/hoses. Cables sync slides; widened-tooth arm locks ensure safety. 110mm min height suits luxury car maintenance.

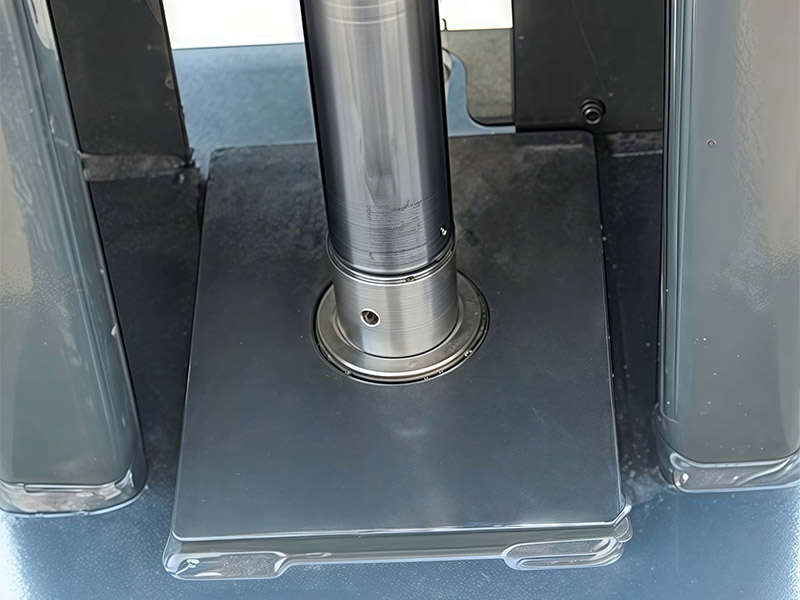

• High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure excellent concentricity and smoothness, and the cylinder barrel is rolled with mirror surface.
• Fully imported seals, manual lowering, safe and simple operation.
• Precise laser cutting technology, accurate size, smooth cut and high finish.
• Double oil cylinders are directly driven to ensure stable lifting.
• Shot blasting surface treatment and high temperature spraying treatment to ensure durability. The cable oil pipe is completely concealed, and the appearance is beautiful and generous
• The two steel cables are linked synchronously to force the two sliding platforms to move synchronously, effectively preventing the vehicle from tilting.

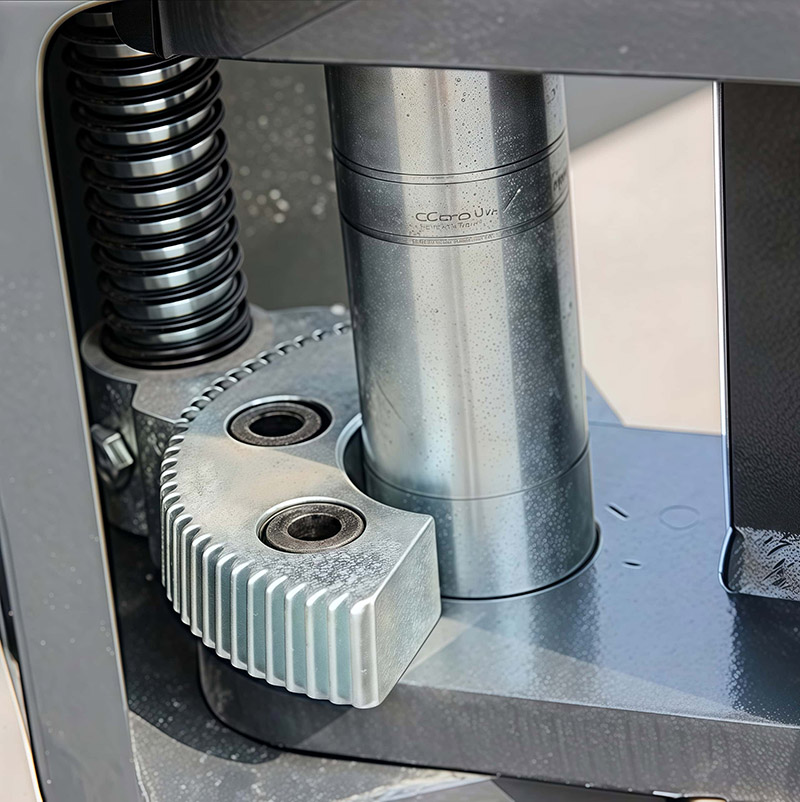

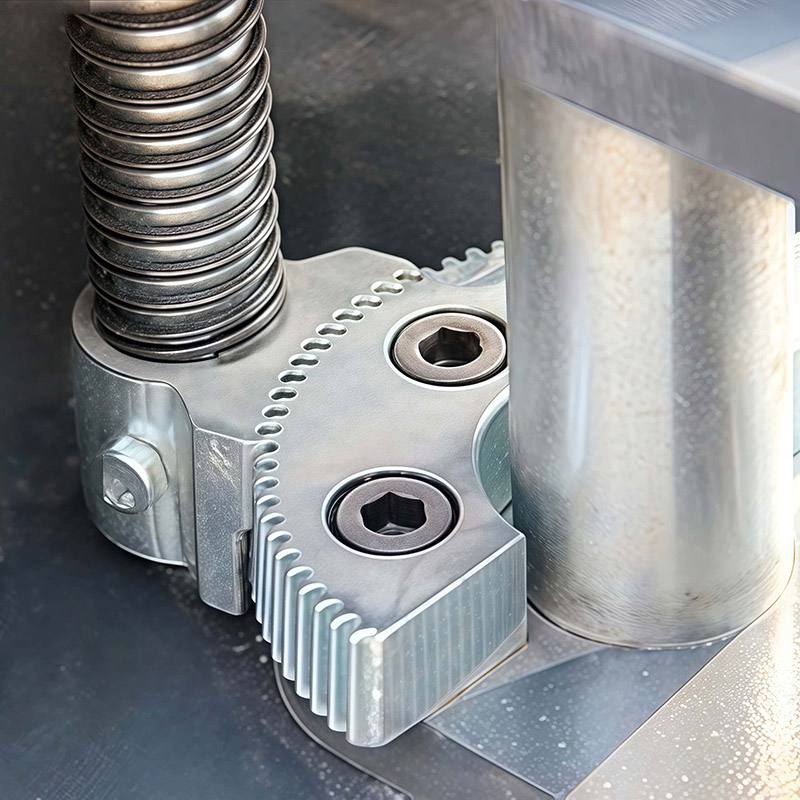

• The bracket locking mechanism is equipped with widened gear block, which can effectively prevent the bracket from slipping, and it is safer to lift the vehicle.
• The minimum lifting height is 110mm, which is conducive to the maintenance of high-end luxury cars.
Parameters:
Lifting Capacity:4T
Total Height:3830mm
Lass Width:2744mm
Total Width:3395mm
Max.lifting Height:1850mm
Min.lifting Height:110mm
Lifting Time: 50s
Decline Time: 30s
Machine Weight:650kg
Power Supply:2.2kw，220V/1PH，380V/3PH
IOS9001 Certification
