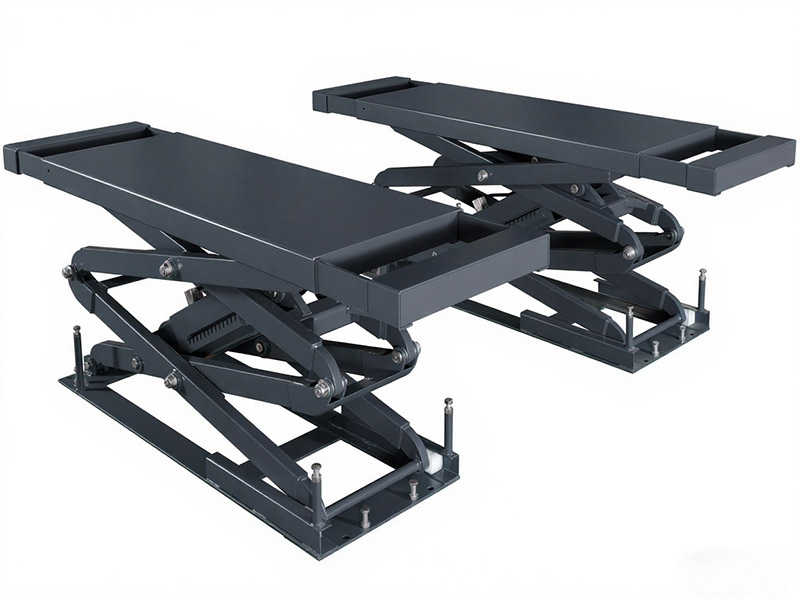

It uses wear-resistant polymer sliders for smooth movement and integrated non-welded safety gears. Featuring hydraulic synchronization, dual hydraulic/mechanical safety, auto-lowering unlock, CNC-machined cylinders, imported seals/ball valves and explosion-proof devices. Laser-cut, shot-blasted (high-temp sprayed) for durability, it has adjustable platform length and wear-resistant bearings on all shafts.

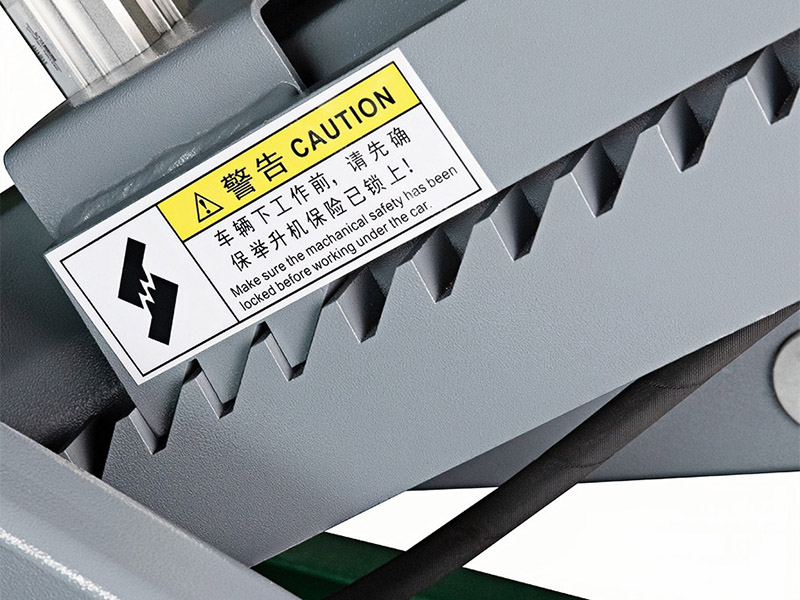

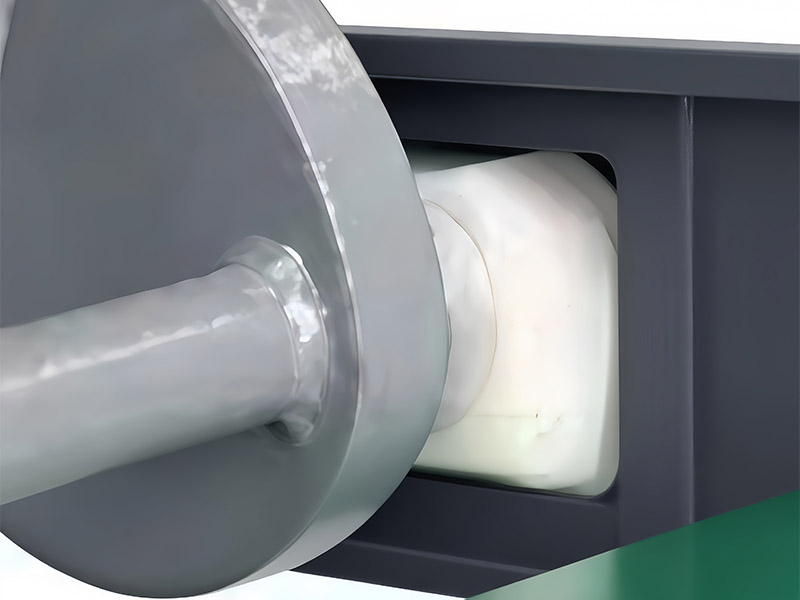

• Wear resistant polymer slider is used for walking, which is more stable, high-strength and high-precision integrated non welding mechanical safety gear.
• Hydraulic synchronization,hydraulic lock and mechanical double safety device,automatic unlocking when descending.

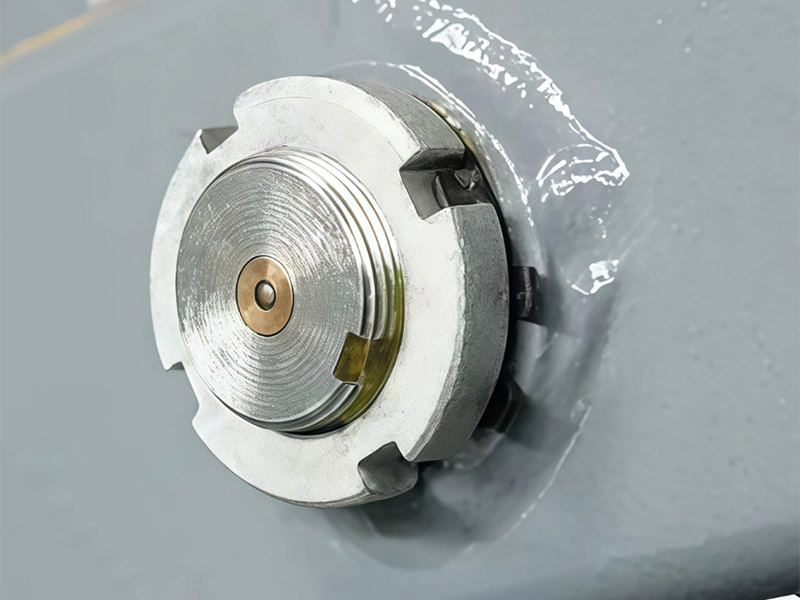

• High speed fully automatic CNC lathe is used for processing oil cylinder components to ensure excellent concentricity and smoothness, and the cylinder barrel is rolled with mirror surface.
• All imported seals and ball valves are equipped with hydraulic explosion-proof devices.
• Precise laser cutting technology, accurate size, smooth cut and high finish
• Shot blasting surface treatment and high temperature spraying treatment ensure durability.
• Adjustable platform length.
• All shafts are equipped with wear-resistant bearings.
Parameter：
Model：CSLI-7000
Power Unit：electric-hydraulic pump/电动泵
Lifting Capacity：3500 kg
Maximum Lifting height：2050mm
Minimum Height：340 mm
Platform Length：1540-1740mm
Single Platform width：550 mm
Unlocking System：pneumatic unlocking
Working Voltage：110/220 V
Working Power：2.2 kW
