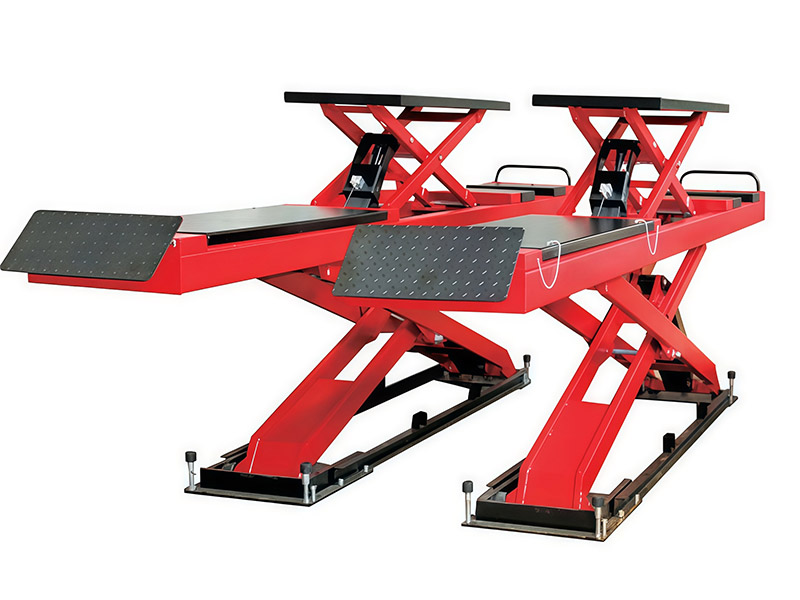

Controlled by an electric hydraulic pump, it has a 24V low-voltage system—safe to operate, powerful and low-failure. With a mother-son platform for secondary lifting (flexible use), it has a pneumatic unlocking system for slow emergency lowering. Dual cylinders ensure safety, speed and stability; movable/side slides fit 4-wheel alignment. ISO 9001:2015 certified.
• High quality electric-hydraulic pump, DC 24V operation voltage, safe, powerful, and low failure rate;
• Double-scissor design allows twice lifting, smarter and more convenient;

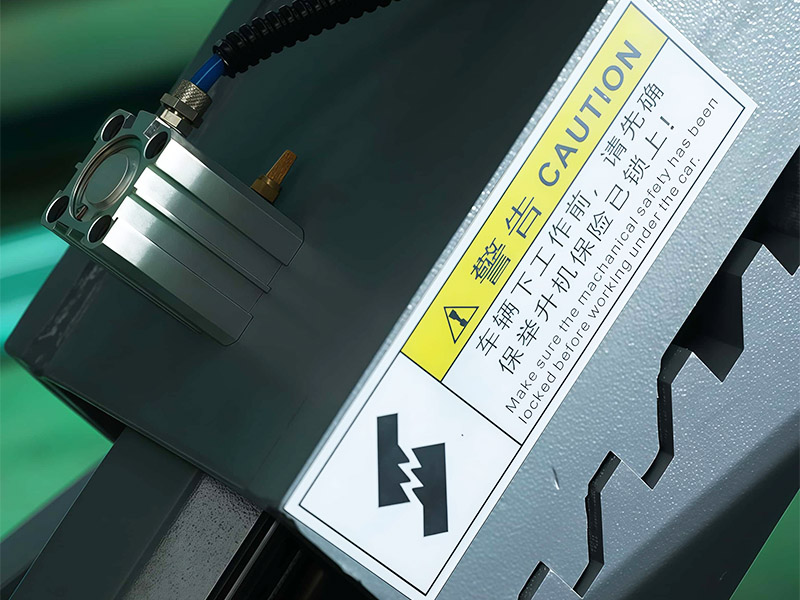

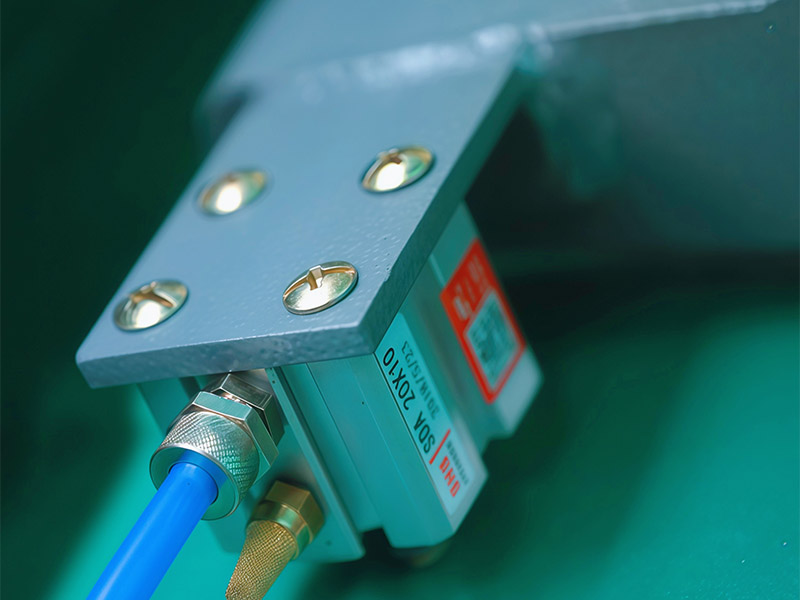

• Pneumatic locking system allows slow descent in case of emergency;

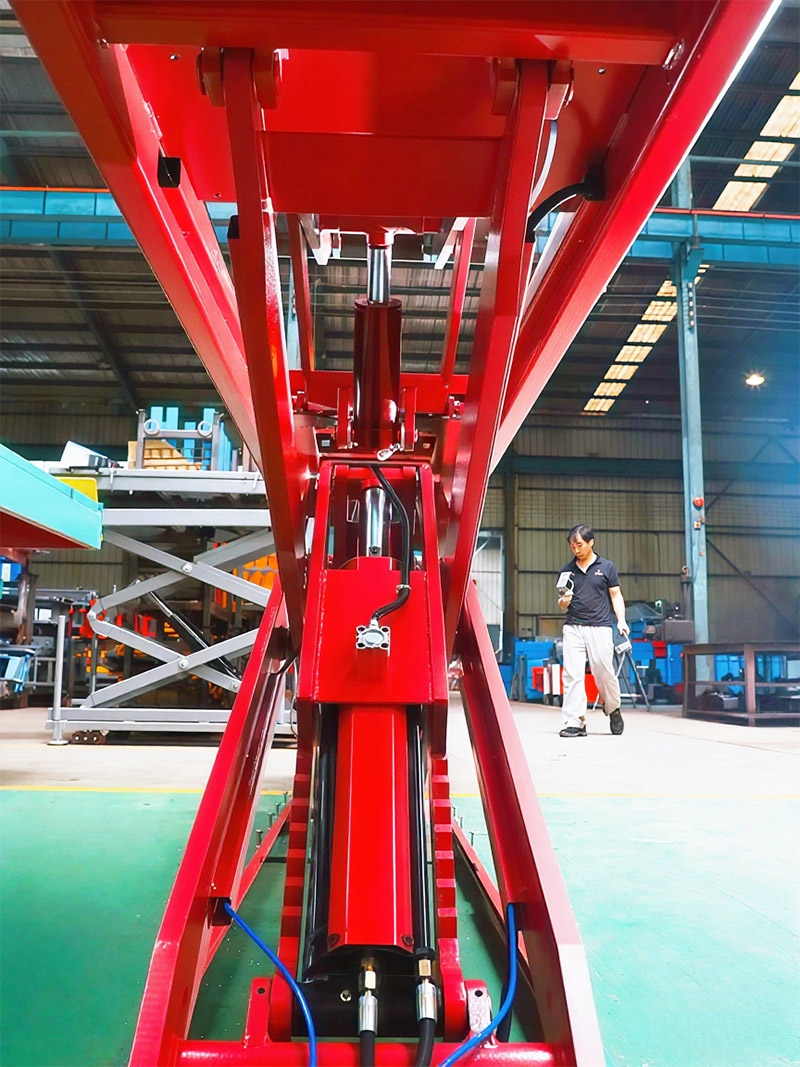

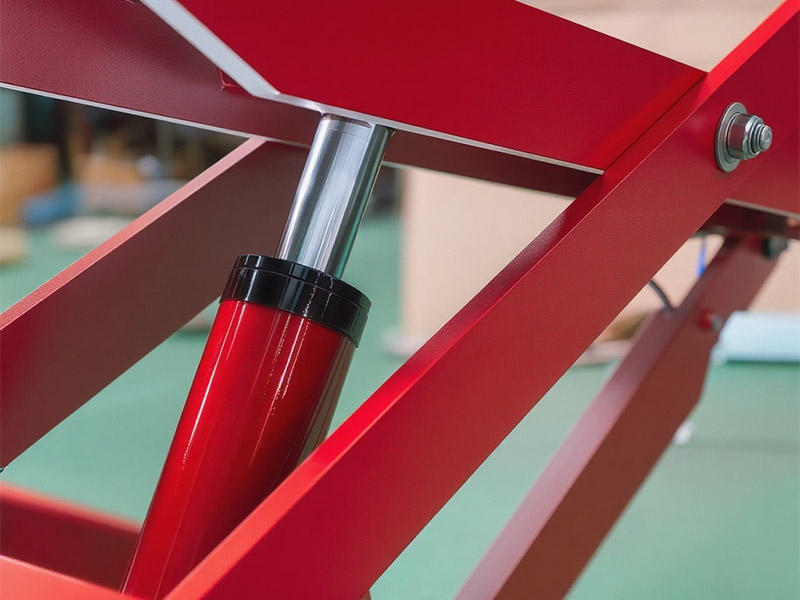

• Double-cylinder design makes the lift safe, fast, and steady;
• Design of removable board and sliding plate allows the lift to work as wheel-alignment lift;
• ISO 9001: 2015certified
Parameter：
Model：TF-USL4000B-M
Lifting Capacity：4000 kg
Max. Lifting Height：1800 mm
Min. Lifting Height：360 mm
Lifting Capacity of Auxiliary Jack：2000kg/pc
Lifting Height of Auxiliary Jack：470 mm
Platform Length：4500 mm
Width of Single Runway：600 mm
Unlocking System：Pneumatic Unlocking System
Working Voltage：110/220/380V
