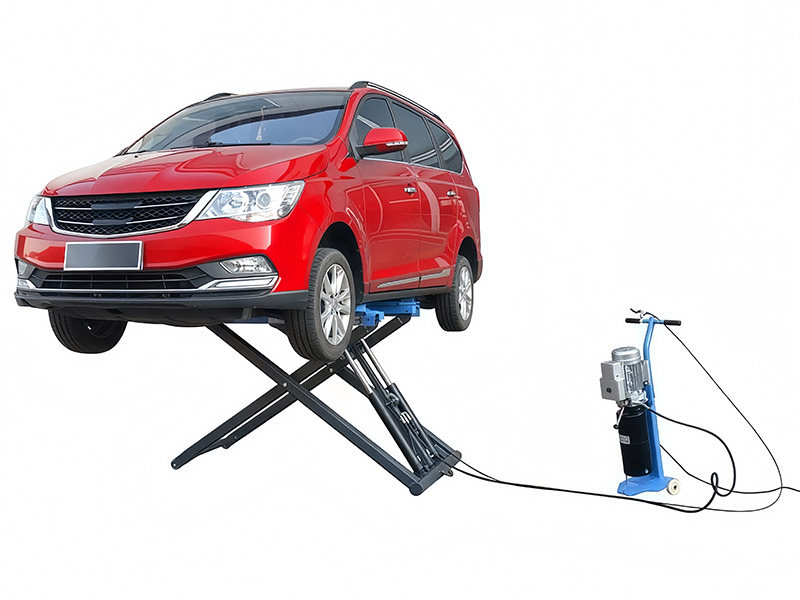

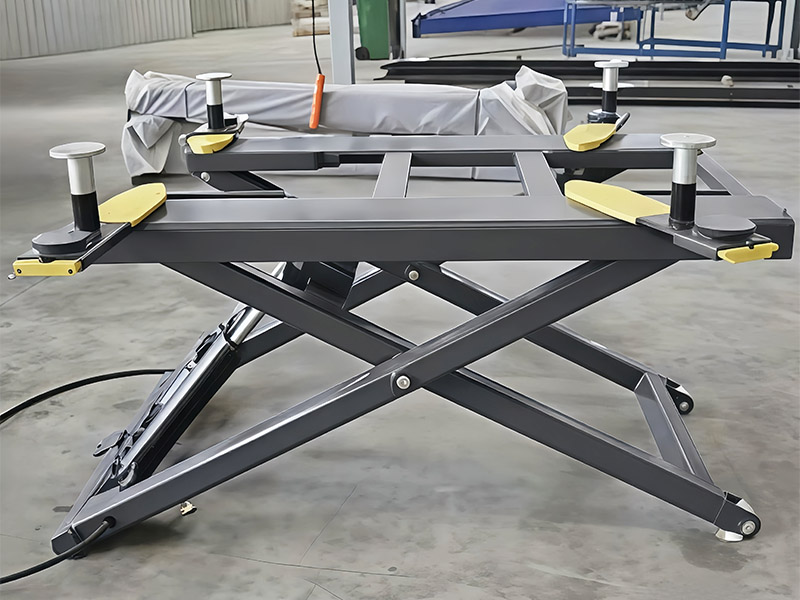

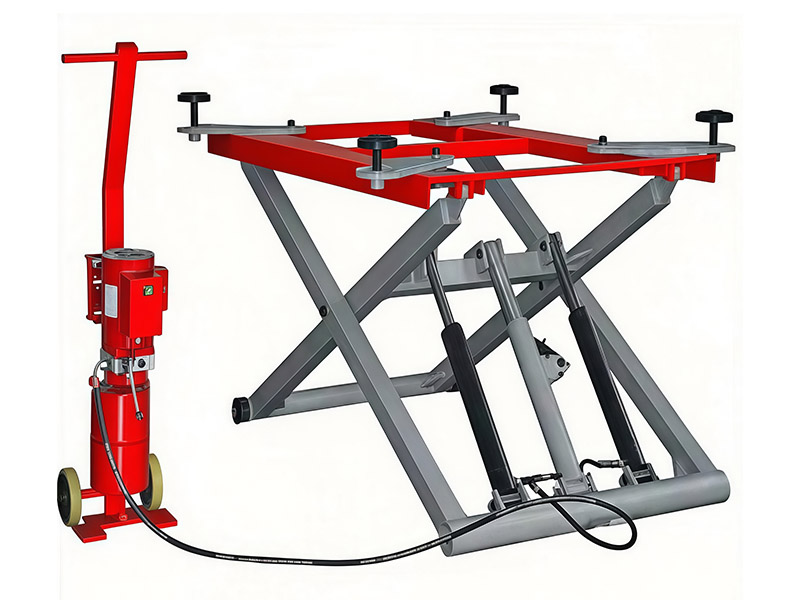

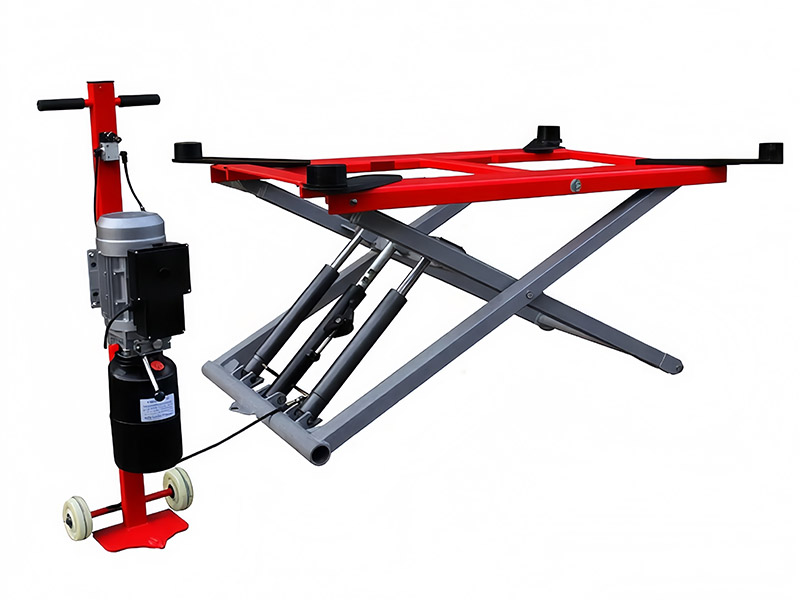

With a movable design for easy use, its mechanical lock auto-locks when lifting and unlocks pneumatically when lowering—safe and reliable. It features precise laser cutting (accurate size, flat cut, high finish), shot-blasted & high-temp sprayed surfaces for durability. Self-lubricating bearings are fitted at all joints; adjustable approach ramps suit long-wheelbase vehicles, and middle connecting rods ensure stability and synchronization.
• Movable design, more convenient to use.
• The mechanical locking device automatically locks when it rises, and pneumati- cally unlocks when it falls, which is safe and reliable.
• Precise laser cutting technology, accurate size, smooth cut and high finish
• Shot blasting surface treatment and high temperature spraying treatment ensure durability.
• All movable joints are equipped with self lubricating bearings, and regular maintenance will prolong the service life.
• The supportable approach bridge can be applied to vehicles with longer wheelbase.

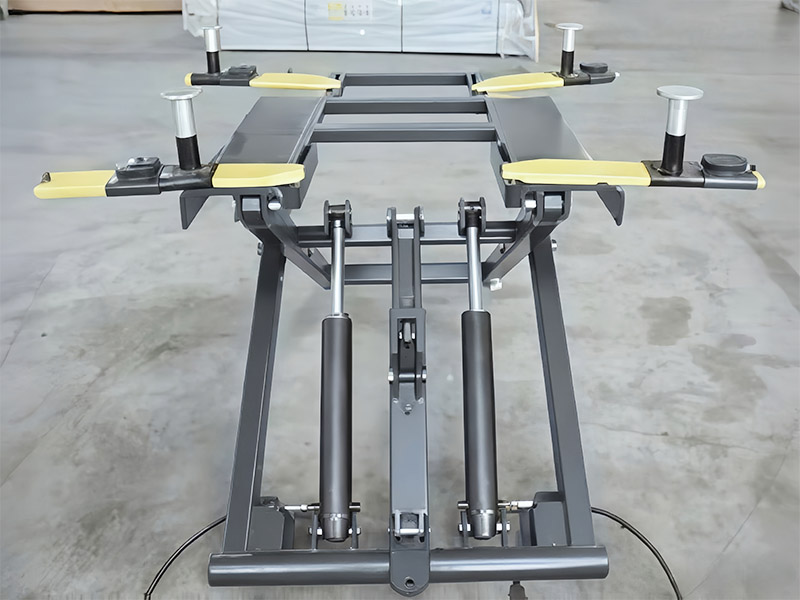

• The connecting rod in the middle ensures stability and synchronization.
Parameter：
Model：CSLM-7000
Power Unit：Electric-hydraulic Pump
Lifting Capacity：2800kg
Maximum Lifting Height：1200mm
Minimum Height：110mm
Platform Length：1680mm
Platform Width：1020mm
Unlocking System：Mechanical Unlocking
Working Voltage：10/220V
Working Power：2.2kW
