It has a movable design for easy use. Its mechanical lock auto-locks when lifting and unlocks pneumatically when lowering, ensuring safety and reliability. Featuring precise laser cutting (accurate size, flat cut, high finish) and shot-blasted, high-temperature sprayed surfaces for durability, it has self-lubricating bearings at all joints (regular maintenance extends service life). Adjustable approach ramps fit more long-wheelbase vehicles, and middle connecting rods ensure stability and synchronization.
• Movable design, more convenient to use.
• The mechanical locking device automatically locks when it rises, and pneumati- cally unlocks when it falls, which is safe and reliable.
• Precise laser cutting technology, accurate size, smooth cut and high finish
• Shot blasting surface treatment and high temperature spraying treatment ensure durability.
• All movable joints are equipped with self lubricating bearings, and regular maintenance will prolong the service life.
• The supportable approach bridge can be applied to vehicles with longer wheelbase.

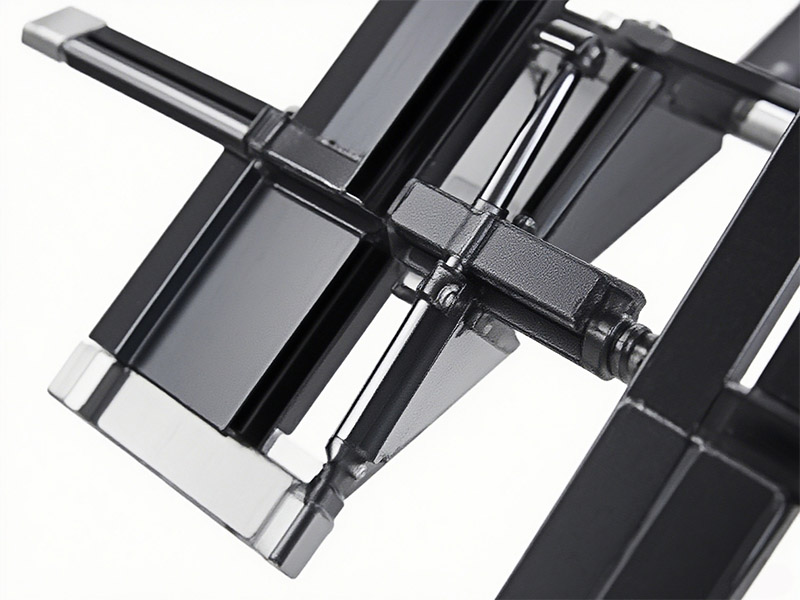

• The connecting rod in the middle ensures stability and synchronization.
Parameter：
Model：CSLM-8000
Power Unit：Electric-hydraulic Pump
Lifting Capacity：3500 kg
Maximum Lifting Height：1000mm
Minimum Height：110mm
Platform Length：1400mm
Single Platform Width：530mm
Unlocking System：Pneumatic Unlocking
Working Voltage：110/220V
Working Power：2.2kW
