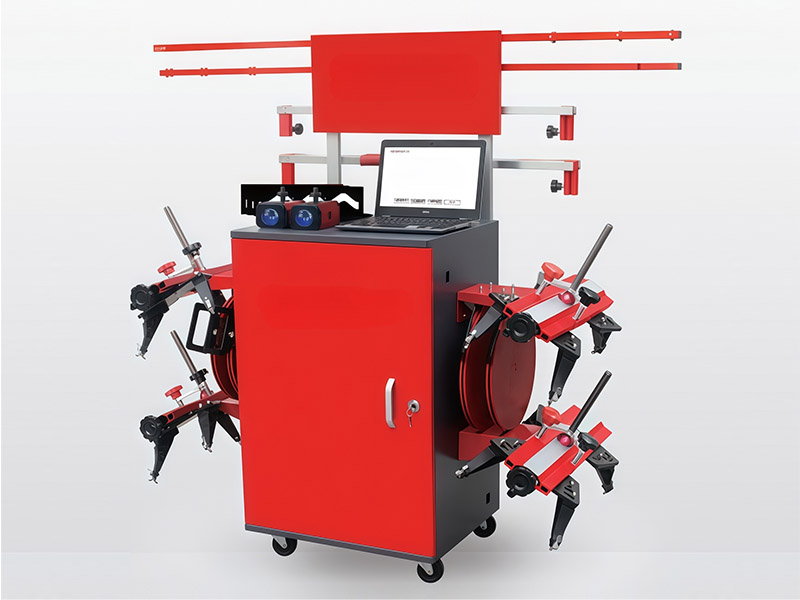

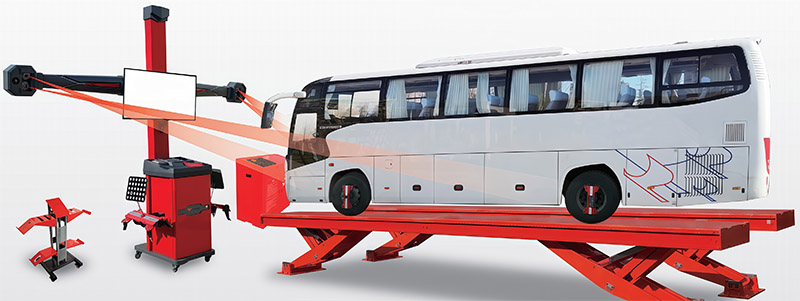

It adopts 4 high-def cameras for real-time, accurate measurement. With commercial vehicle-specific 3D wheel-bridge alignment software (3-bridge simultaneous testing/display for efficiency) and rolling compensation tech, it measures parameters for trucks, trailers, etc. Equipped with a branded PC/TV, it has 3-sized targets (stepped installation) and a unique turntable approach ramp for ease.
• High-definition pixel four-camera measurement technology, real-time measurement, precise and fast.
• The 3D wheel axle positioning software specially designed based on the structure of commercial vehicle bodies, is highly accurate in measurement and smooth in operation. The technology of simultaneous measurement and display for three axles significantly improves work efficiency.
• The software adopts the rolling compensation measurement technology and the direct reading of measurement results technology. It can accurately measure multiple positioning parameters of the vehicle in one go and can be widely applied to the wheel axle positioning detection of trucks, trailers, buses, articulated vehicles, military vehicles and special vehicles.
• Equipped with brand computers and brand LCD TVs, it can easily achieve convenient testing, shunting and visualization display of the measurement end.
• Three measurement target surfaces of large, medium and small sizes are specially designed based on different vehicle models and adopt a stepped installation method for convenient measurement, which is precise and fast. The unique attached angle disc wheel bridge design makes the measurement more convenient.
Parameter：
Measurement | Display | Measurement |
Display Accuracy | 1'/0.01°/0.1mm | ±20° |
Toe | +2' | ±10° |
Camber | ±2’ | +20° |
Caster | ±6’ | ±20° |
Kingpin Inclination | ±6’ | ±5° |
Set back | ±2’ | ±5° |
Thrust angle | ±2’ | 2300~12000mm |
Axis deviation | ±2mm | 1700~2800mm |
Wheel deviation | ±2mm |
|
